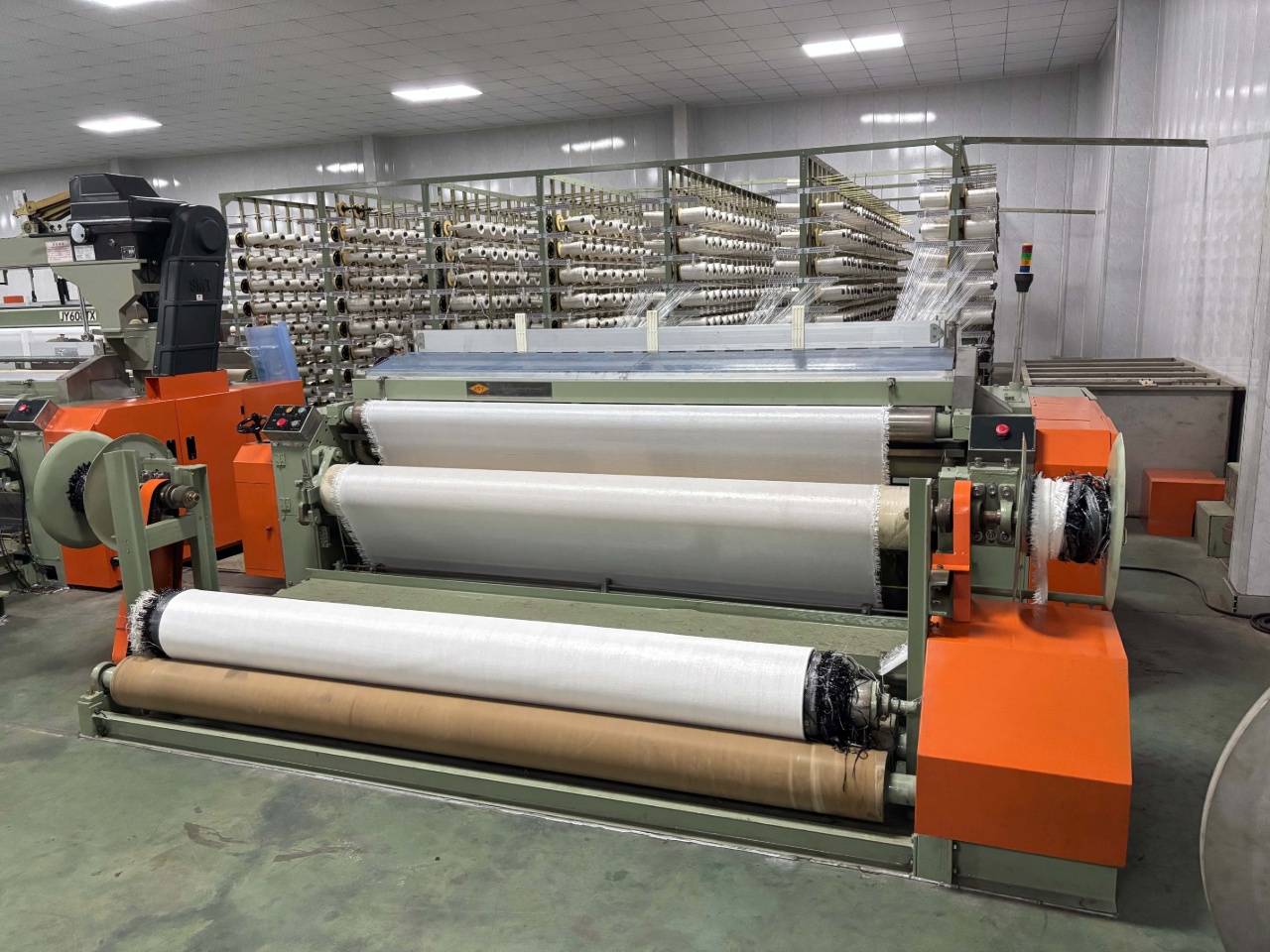

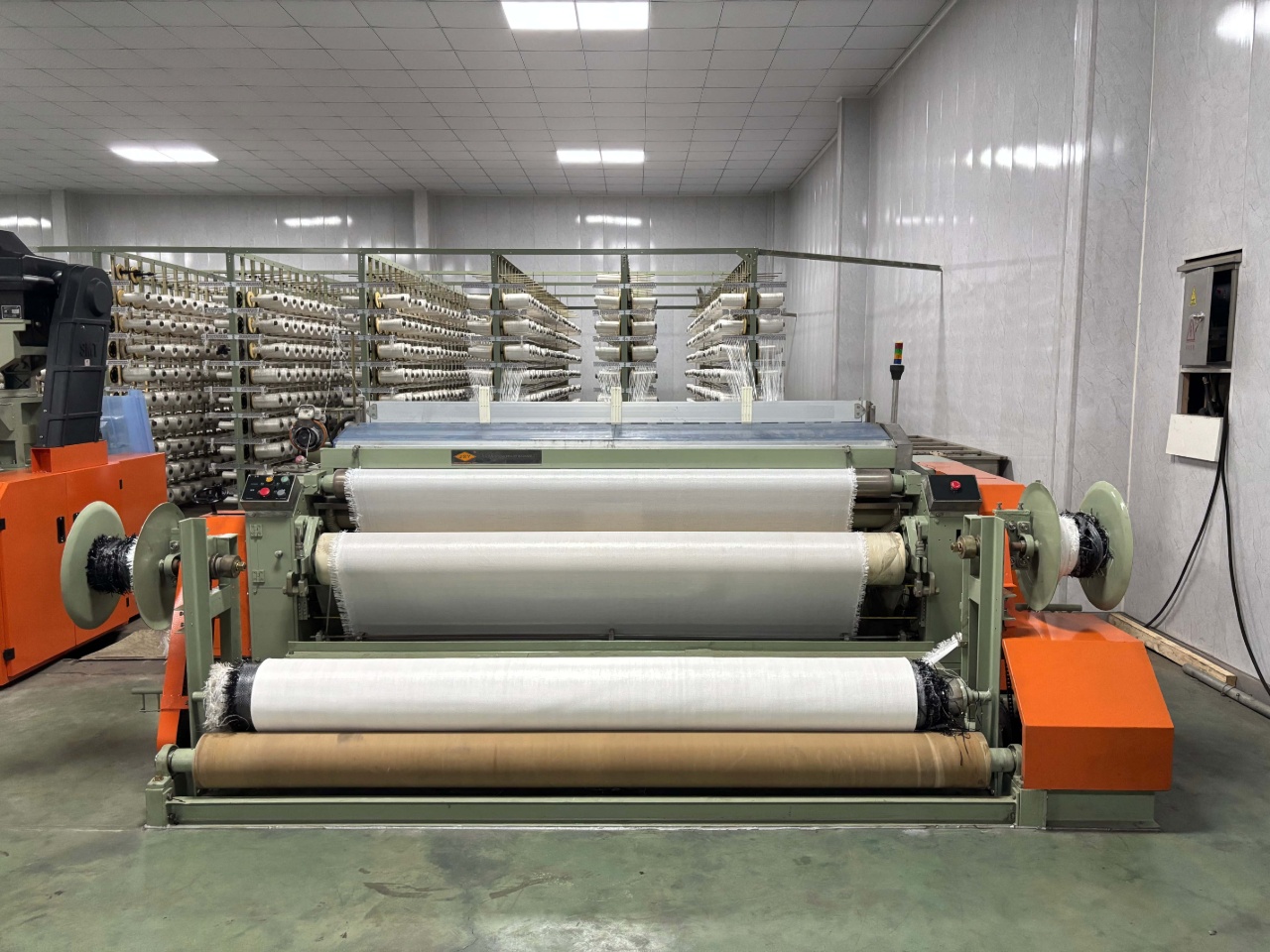

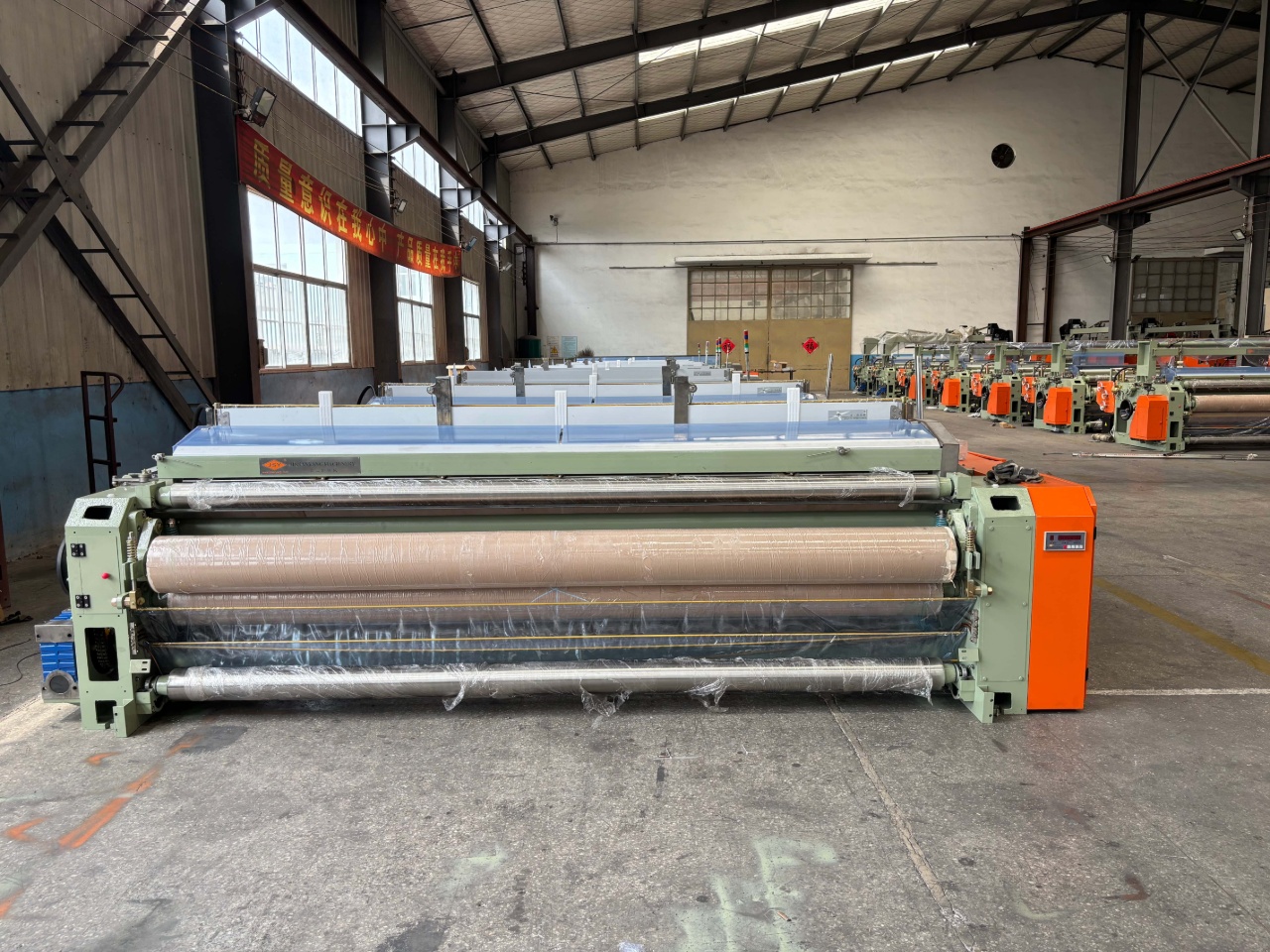

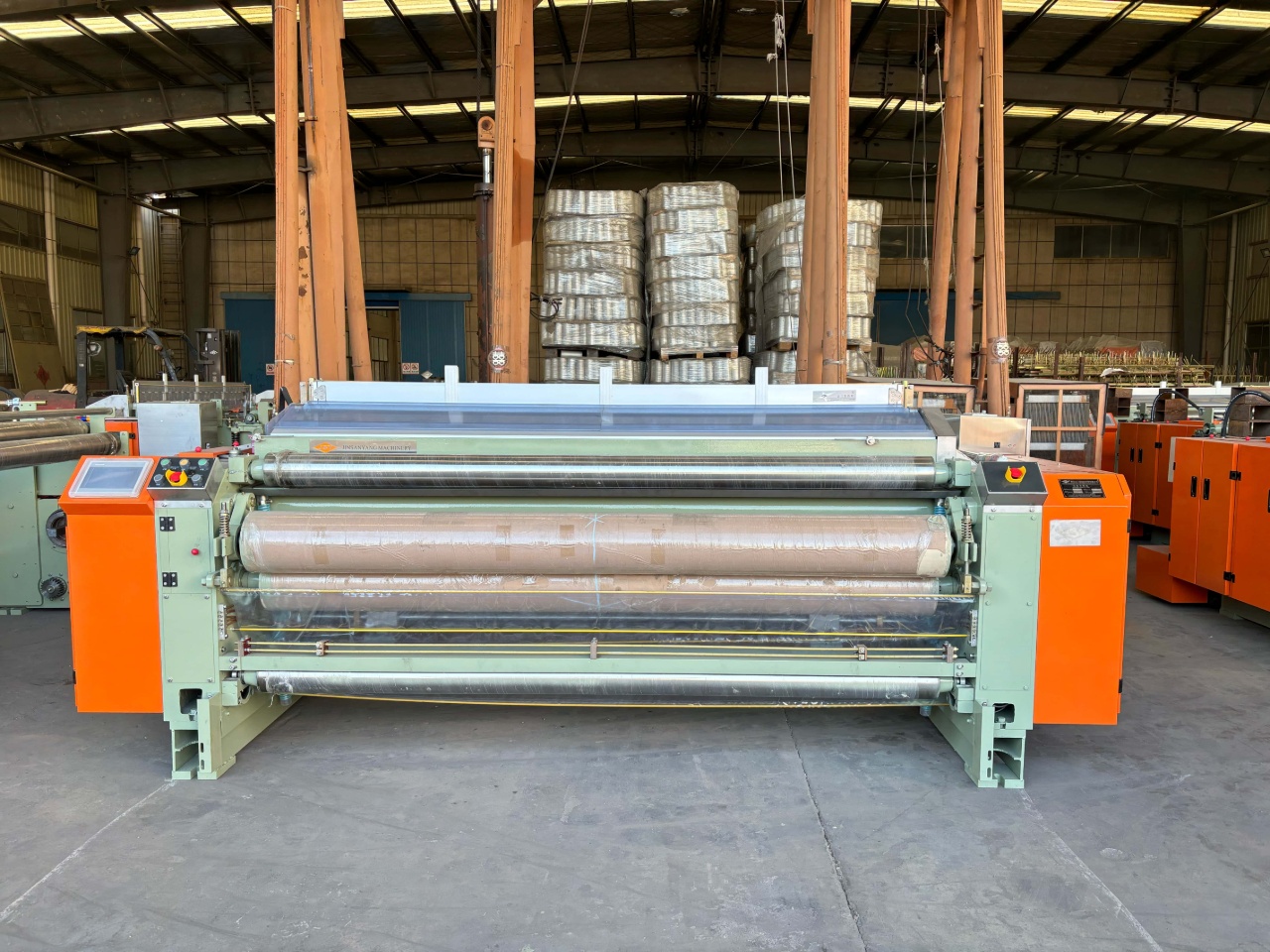

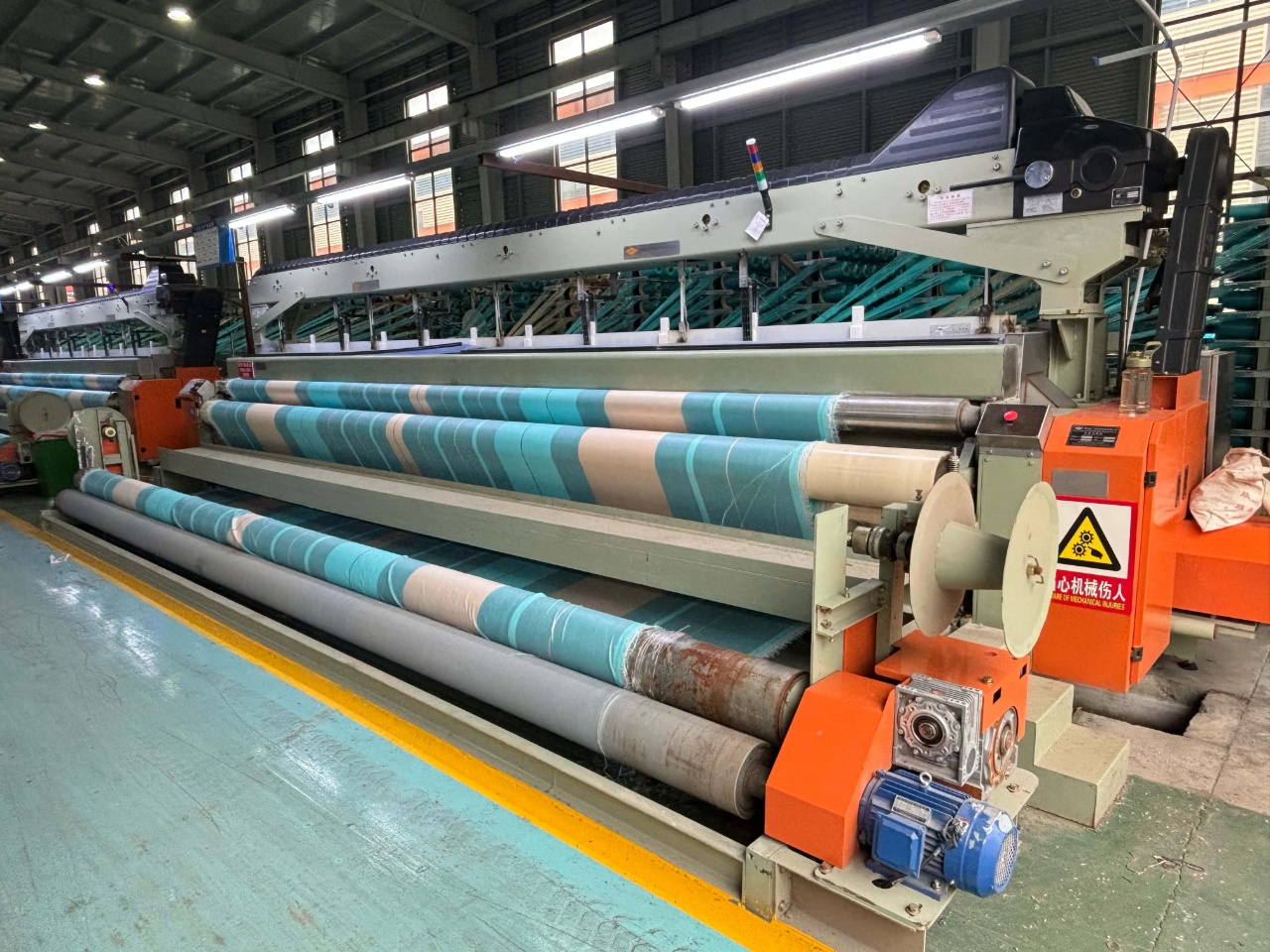

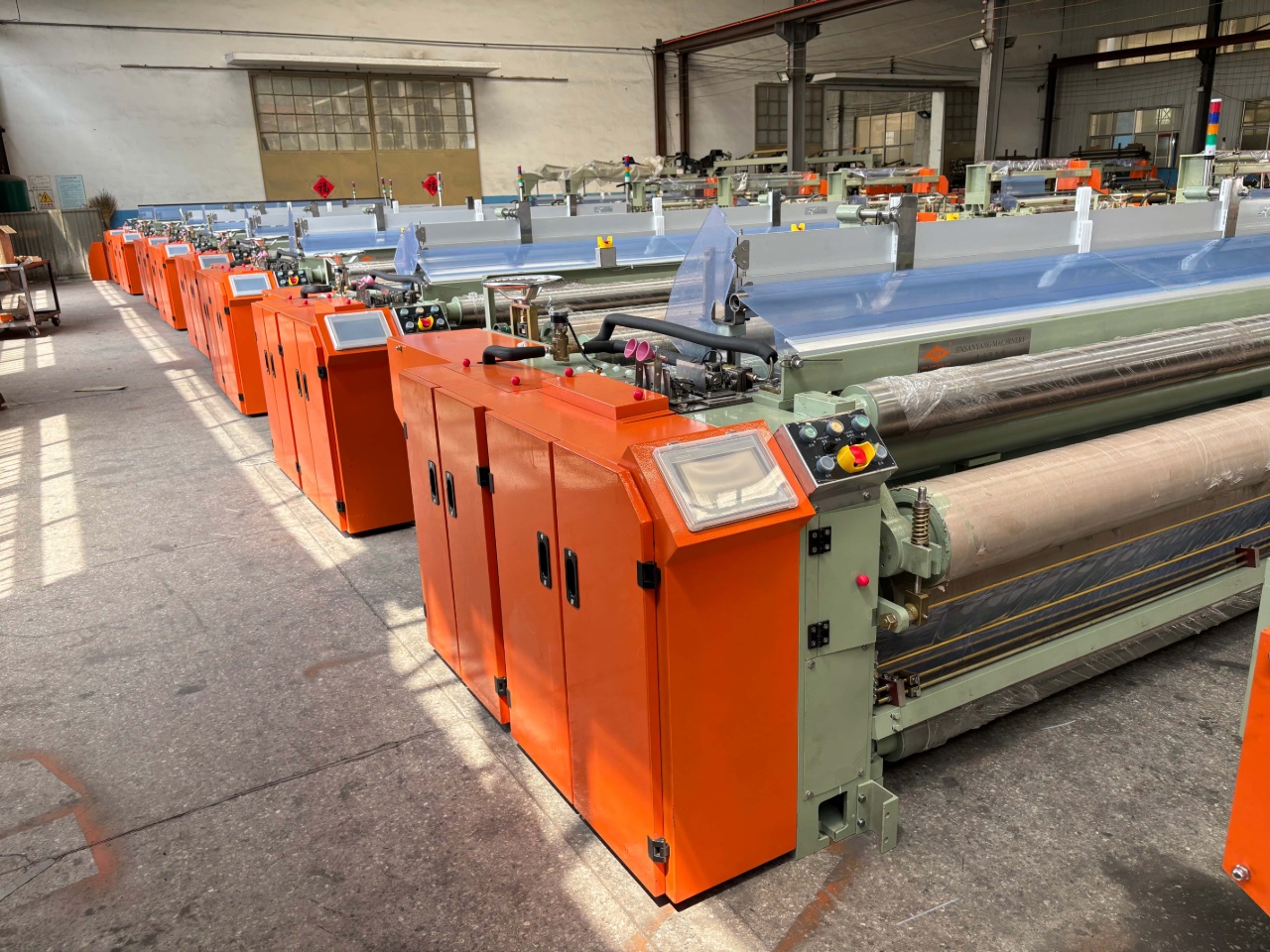

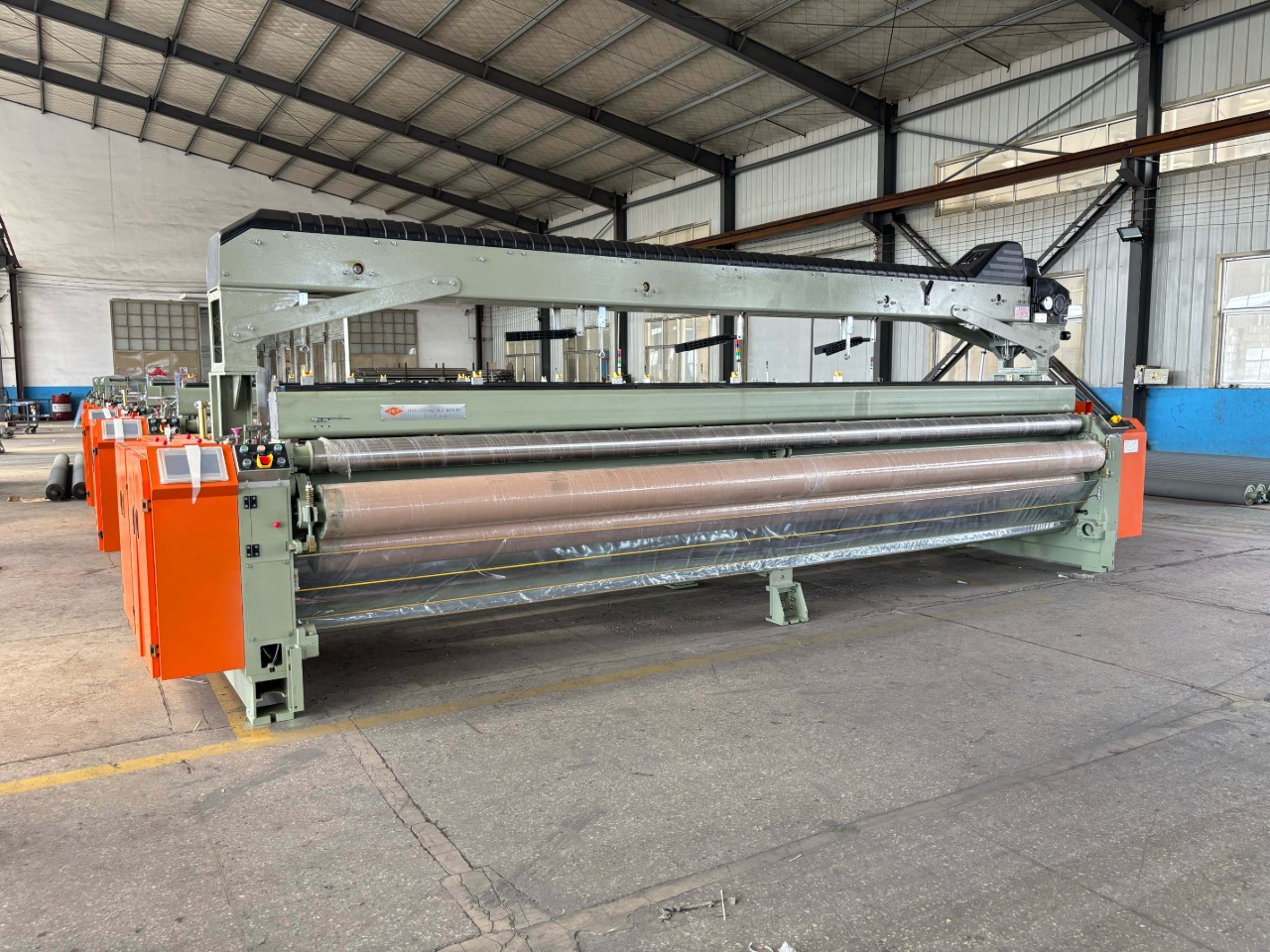

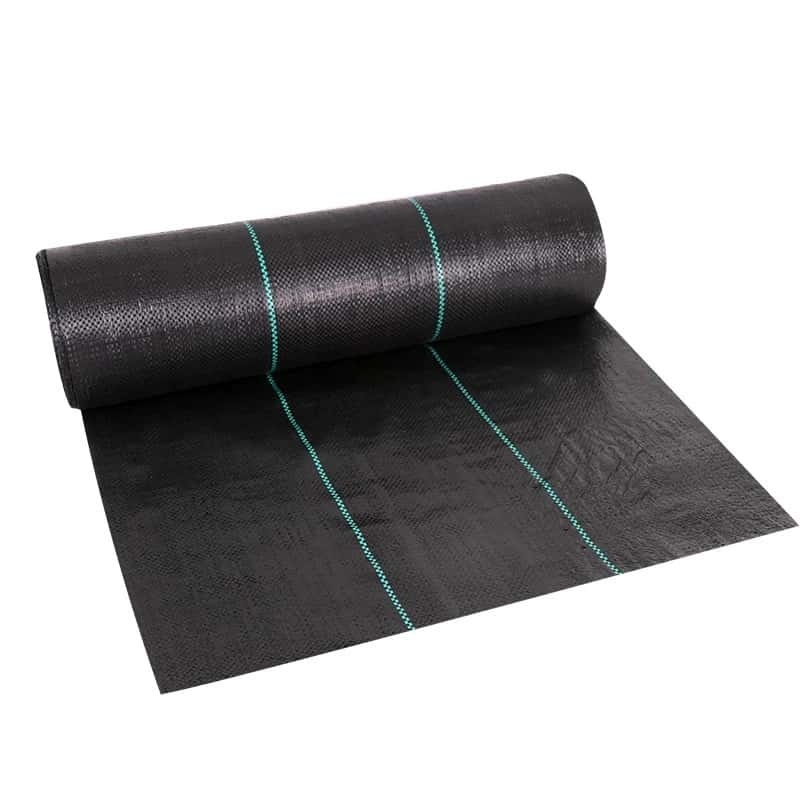

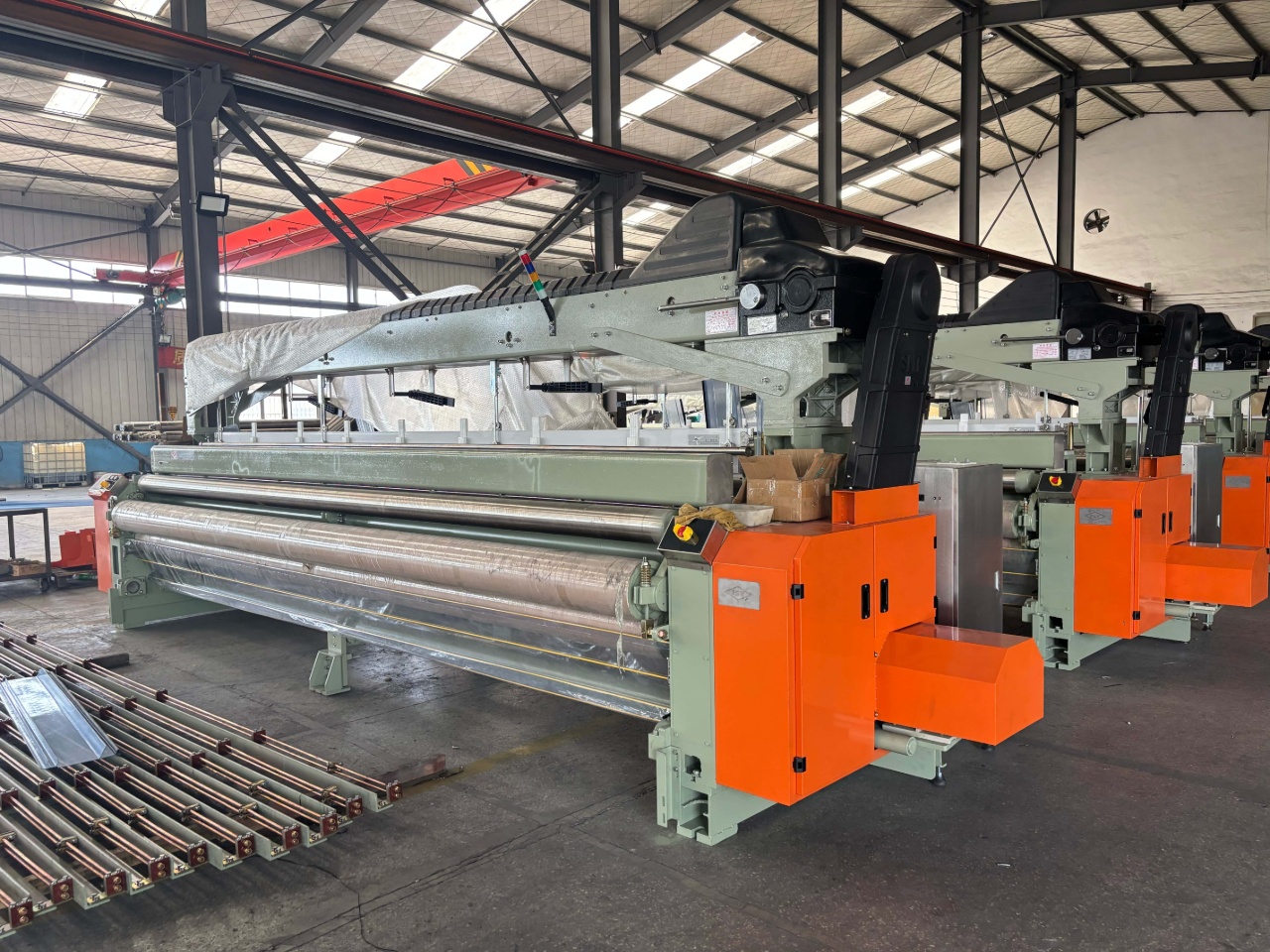

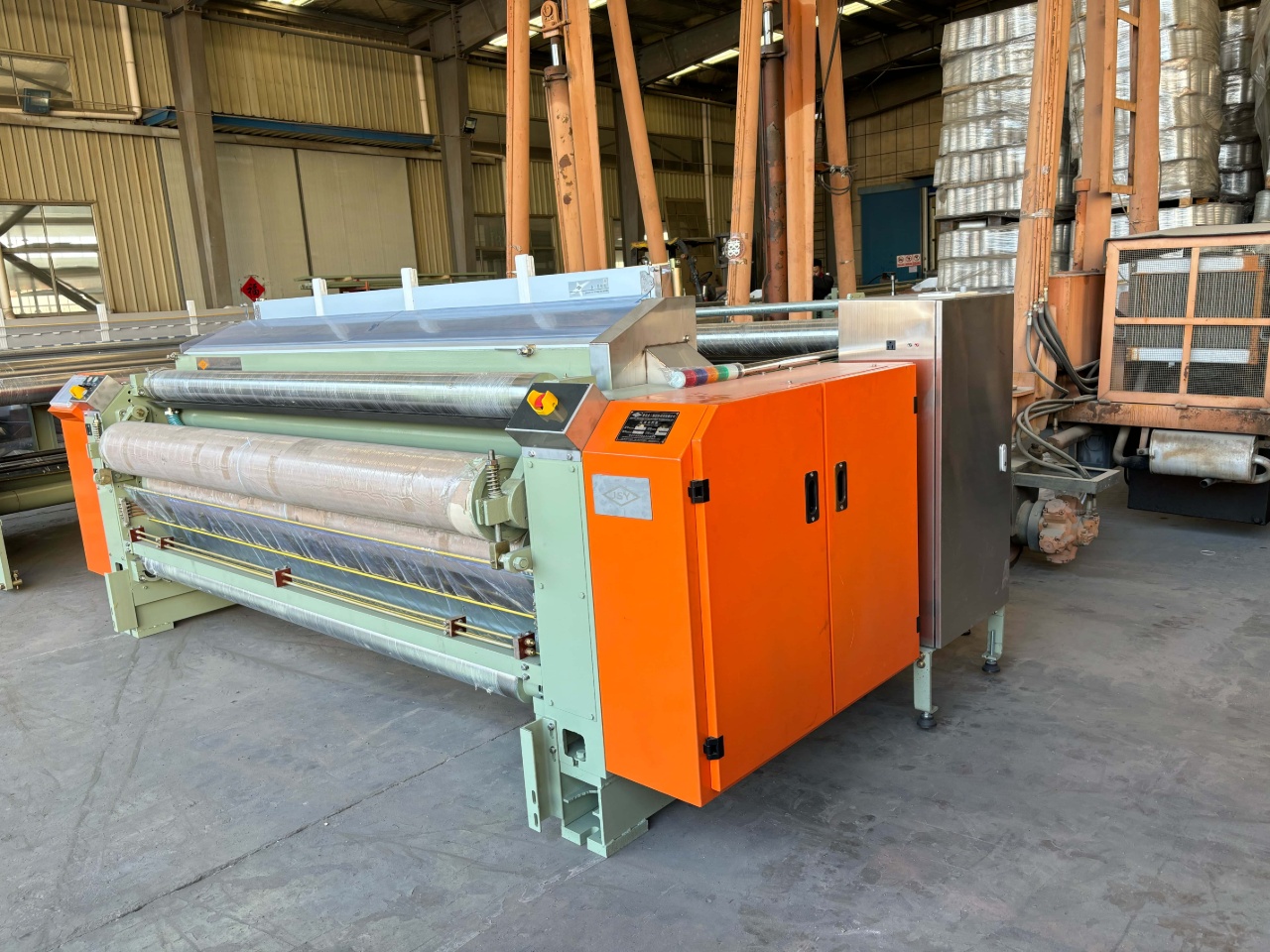

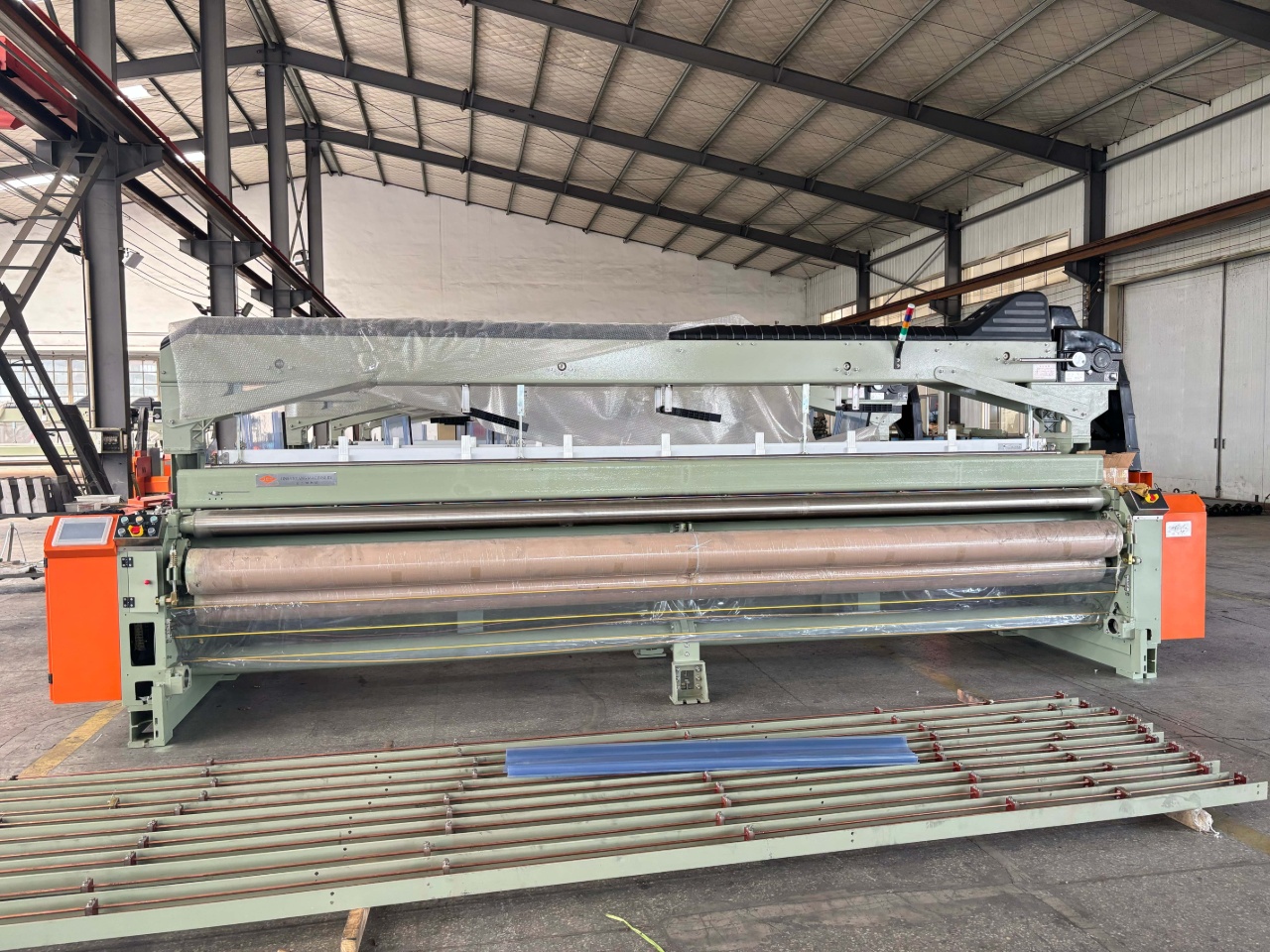

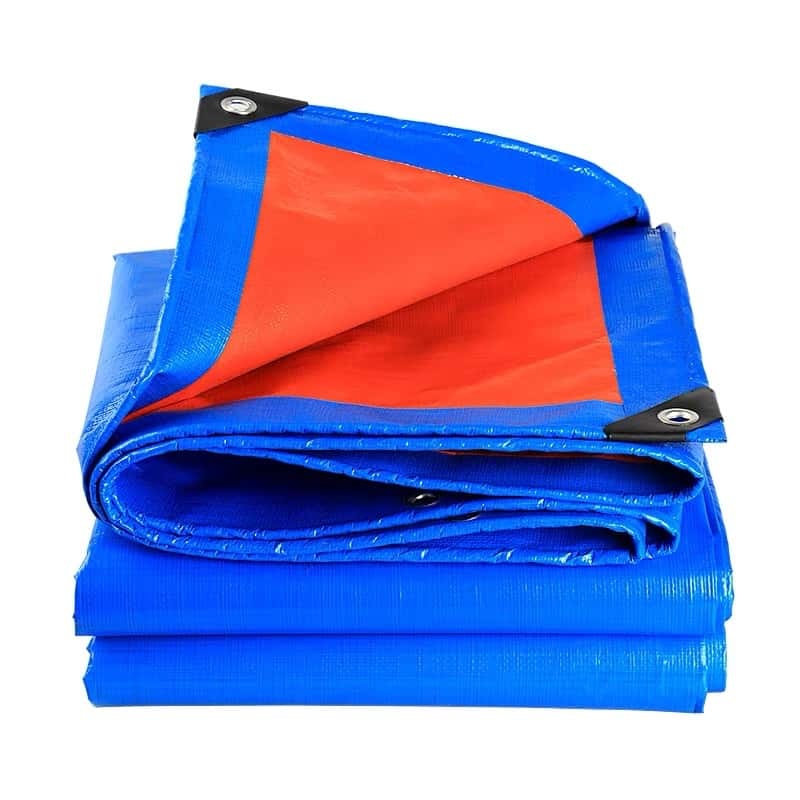

UW608T Water Jet Loom is a new type of plastic woven machine, which mainly produces plastic woven fabrics, which can be widely used for weaving HDPE tarpaulins, weedmat, agricultural ground cover, insect net, mesh net, geotextiles and other plastic packaging products.
Strong frame and loom body, electronic feeder and automatic weft density change ensure smooth running, high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
UW608T Water Jet Loom is one type of flat looms, it can replace the Sulzer projectile loom, due to the easier operation, lower cost, less maintainence, less labor cost.
Reed space | 230cm | 260cm | 280cm | 320cm | 360cm | 460cm |
Working width | 220cm | 240cm | 260cm | 300cm | 340cm | 440cm |
Weft Insertion | 1 pump, 1 nozzle | |||||
Positive cam plunger water pump | ||||||
Intermittent adjustable annular nozzle | ||||||
Measuring and weft storage | Electronic feeder | |||||
Weft density change | By gear | |||||
Inverter automatic change | ||||||
Weft feeler | Photoelectric induction weft detection | |||||
Motor power | 2.8~4.5kw | |||||
Auxiliary power | 0.7~1.5kw | |||||
Speed | 250~700rpm | |||||
Shedding | Crank shedding at bottom | |||||
Let-off | Mechanical let-off | |||||
Take-up | Electronic take-up | |||||
Max. Winding diameter 1500mm | ||||||
Weaving yarn range | GSM: 25~250gsm(up to the yarn quality) | |||||
Max. Weft yarn width: 6.5mm | ||||||
Min. Weft yarn thickness: 0.015mm | ||||||
Weaving density: 6~18/inch | ||||||
